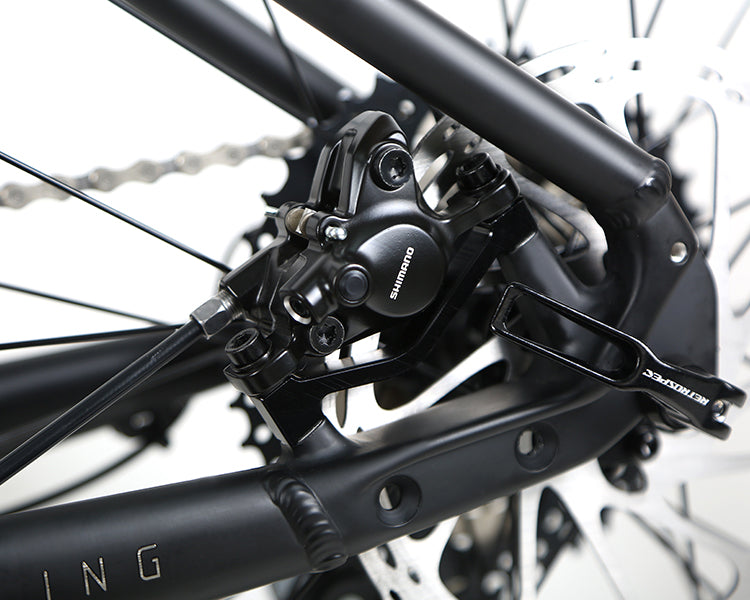

| Bike Model | 500W+48V15A | Brake | SHIMANO MT200 hydraulic disc brake,180/180mm |
| Frame Size | 27.5 × 16" | Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" |

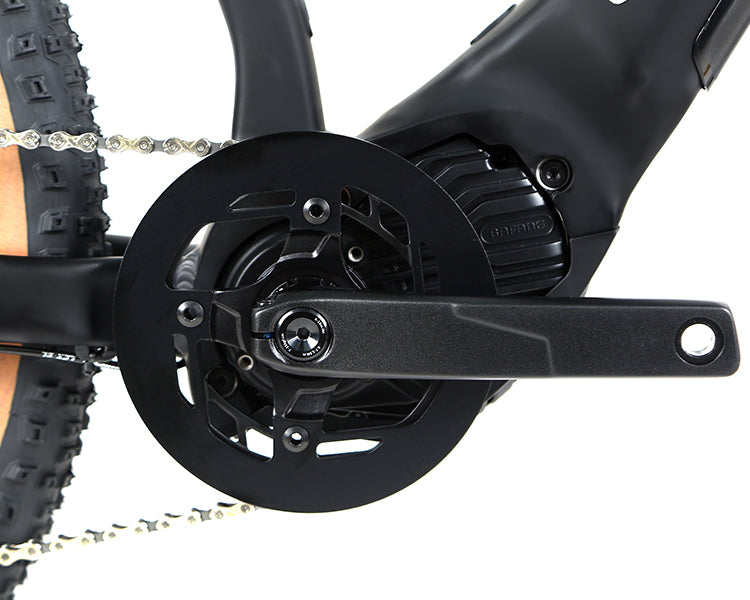

| Bike Color | DarkGreen / DarkGrayBlack / Black / | Motor System | Bafang Mid, M560, 48V 500W |
| Net Weight | 22.0 KG | Max Torque | 140 N.m |
| Frame | Alu alloy AL7005,Flat weld,Inner cables,Thru-axle12*148 Boost | Speed Limit | 25KMh( Max 45KMh) |
| Handelbar Sets | Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm | Pedal Sensor | Torque+Cadence |

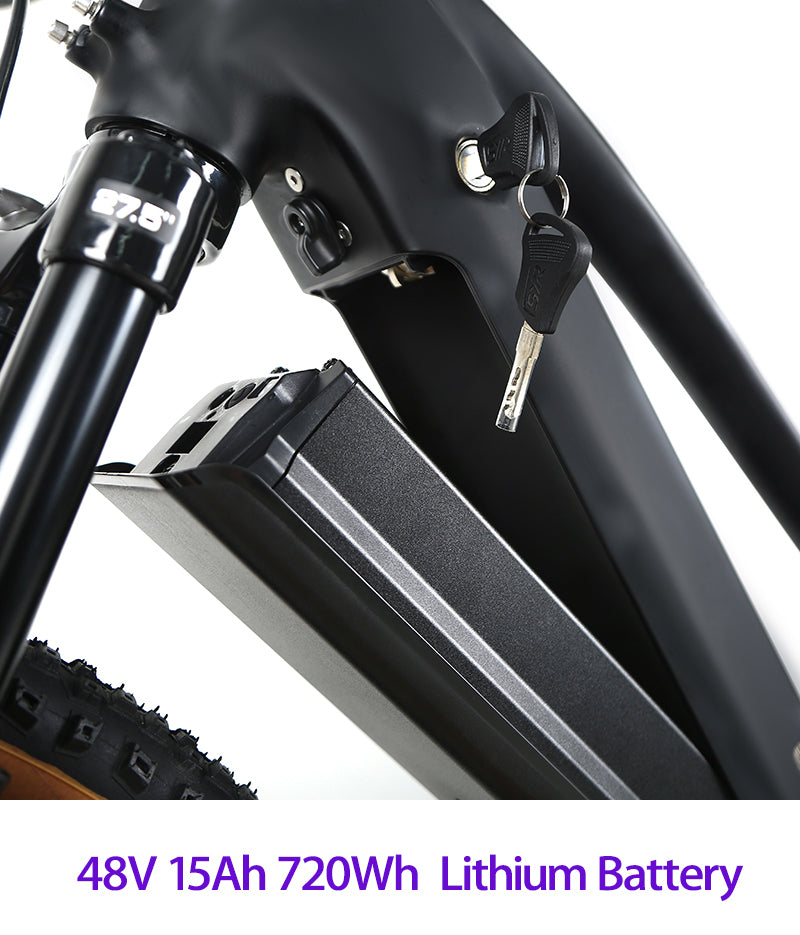

| Front Fork | MgAl alloy, Air suspension,120mm, Remote,Thru-axle 15*110 Boost | Battery | Samsung 21700 Li-ion 720Wh, 48V15A |
| Head Sets | Alu alloy CNC with sealed Bearings 52*52mm | Endurance | 130-150KM (pedal assist) |
| Derailleur Lever | SHIMANO DEORE/M6100-12S | Charging Time | 8-9 Hours |
| Rear Derailleur | SHIMANO DEORE/M6100-12S | Charger | 2A, DC2.1 |
| Cranksets | Matching with Mid Motor, 38T | HMI | Bafang, LCD digital, 0-5 Modes |
| Cassettes | SUNSHINE-12S,11-50T | Waterproof | IP X5 |
| Chain | SUMC-12S | Max Load | 150 KG |
